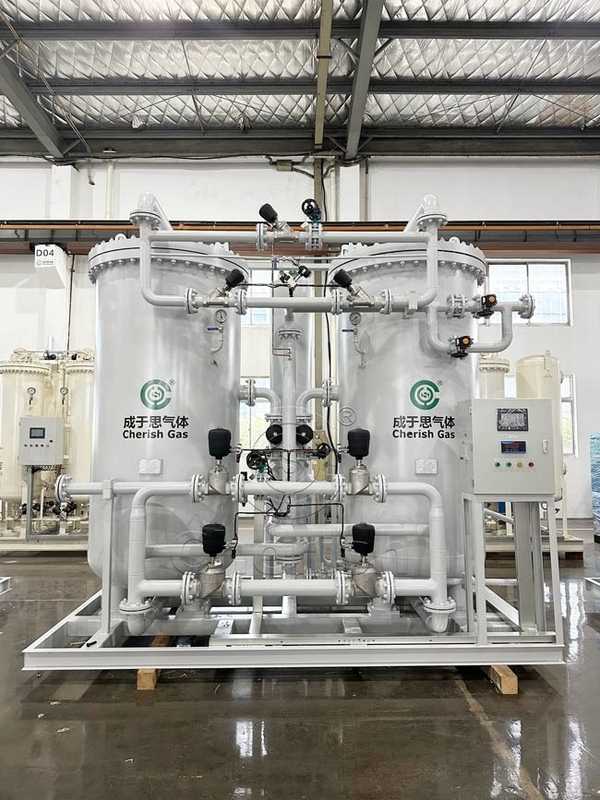

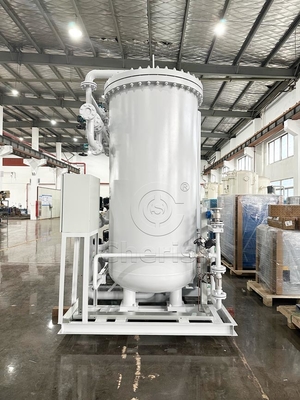

Skid Mounted Psa Nitrogen Gas Generator 99.99% Purity

The Skid-Mounted PSA Nitrogen Generator Saves Space, Environmentally Friendly And Efficiently Produces Nitrogen Gas​

Working Principle Description:

1. Adsorption: Air is compressed and fed into a vessel filled with a carbon molecular sieve (CMS) adsorbent. Oxygen and other trace gases are preferentially adsorbed by the CMS, allowing nitrogen to pass through.
2. Desorption: After a period, the CMS becomes saturated with adsorbed gases. The pressure is reduced, causing the adsorbed gases to desorb and be vented out of the system.
3. Nitrogen Production: The remaining nitrogen, now purified, is collected for use. By alternately pressurizing and depressurizing the CMS beds, a continuous flow of high-purity nitrogen is produced.

This process allows the skid-mounted PSA nitrogen generator to effectively separate nitrogen from air, providing a space-saving, environmentally friendly, and efficient nitrogen production solution.

Product Advantages:

• Space Saving: The compact design of the skid-mounted unit saves valuable space in industrial settings or where space is limited.
• Environmentally Friendly: The system operates using adsorption and desorption processes, eliminating the need for chemicals and reducing emissions, thus promoting environmental sustainability.
• Efficient Nitrogen Production: The PSA technology efficiently separates nitrogen from air, providing a reliable source of high-purity nitrogen on demand.
• Cost-Effective: The unit offers a cost-effective solution for nitrogen generation, reducing operational costs over time.
• Versatility: Skid-mounted PSA nitrogen generators are versatile and can be easily transported and installed in various industrial applications.
• Reliability: These systems are known for their reliability in delivering a consistent supply of nitrogen with high purity levels.
• Low Maintenance: Skid-mounted units are designed for easy maintenance, minimizing downtime and ensuring optimal performance.

Technical parameters:

● Nitrogen delivery ≤150Nm3/hr;

● Purity 99.99%

● Pressure 0.4~1.0 Mpa

● Atmospheric dew point ≤－40℃
