Efficient Extraction Process Psa Based Nitrogen Plant Reliable Nitrogen Supply

PSA Nitrogen Generator With An Efficient Nitrogen Extraction Process, Ensuring A Reliable Nitrogen Supply

Working Principle Description:

1. Air Purification: The initial step involves passing the air through a purification system to remove water, oil, and other impurities, ensuring that the subsequent nitrogen generation process remains uncontaminated.
2. Air Compression: The purified air is directed into a compressor to reach the required pressure, often compressing the air to a higher pressure using the compressor.
3. Cooling Compressed Air: The compressed air passes through a cooling system to reduce its temperature in preparation for nitrogen separation.
4. Nitrogen Separation: Separation techniques such as membrane separation, adsorption separation, or molecular sieves are commonly employed. Membrane separation technology is frequently used, where oxygen and other gases are separated from nitrogen using a semi-permeable membrane to produce high-purity nitrogen.
5. Nitrogen Collection: The separated nitrogen is collected, while the unseparated gases like oxygen are expelled from the system.
6. Nitrogen Output: The high-purity nitrogen produced can be used in various applications, such as industrial processes, laboratory use, food packaging, among others.

Product Advantages:

1. Efficient Nitrogen Extraction: Utilizes advanced technologies for effective separation of nitrogen from air, ensuring high efficiency in nitrogen production.
2. Reliable Nitrogen Supply: Provides a consistent and dependable source of nitrogen, meeting continuous production demands without interruptions.
3. Energy Efficiency: Incorporates energy-efficient methods to reduce power consumption and promote sustainability.
4. Versatile Application: Suitable for a wide range of industrial uses, adapting to diverse operational requirements.
5. User-Friendly Operation: Features intuitive controls and user-friendly interfaces for easy and efficient operation.
6. Robust Construction: Built with durable materials and components for long-lasting performance and reliability.

Application fields:

Nitrogen, commonly referred to as inert gas, is used in some inert atmospheres for metal treatment and in bulbs to prevent arcing, but it is not chemically inert. It is an essential element in animal and plant life and an integral part of many useful compounds. Nitrogen combines with many metals to form hard nitrides, which can be used as wear-resistant metals.

Technical parameters:

● Nitrogen delivery ≤600Nm3/hr;

● Purity 99.999%

● Pressure 0.5~0.8 Mpa

● Atmospheric dew point ≤－40℃

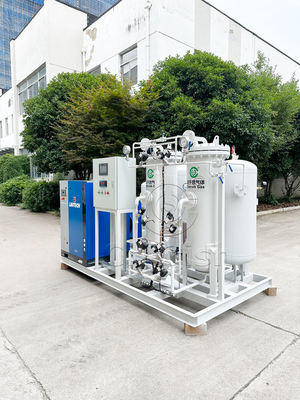

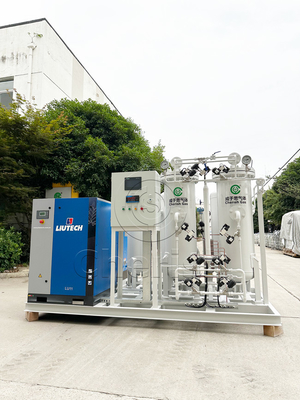

Product picture:
