Pressure Swing Adsorption Oxygen Generator With High Precision And Steady Situation

Pressure Swing Adsorption Oxygen Generator With High Precision And Steady Situation

Working Principle Description:

PSA oxygen production is that molecular sieve is used as adsorbent and ambient air is used as raw material by pressure swing adsorption (PSA). Under the condition of normal temperature and low pressure, the adsorption capacity of nitrogen in air is increased when molecular sieve is pressurized, and the adsorption capacity of nitrogen in air is reduced when pressure is reduced However, carbon dioxide, gaseous acids and other gaseous oxides in the air belong to substances with strong molecular polarity, which are difficult to pass through molecular sieves, so that the oxygen output reaches (93%±3).

Product Advantages:

· 15 ~ 30 minutes can offer qualified oxygen;

· Fully automatic operation of the equipment, the whole process can be realized unattended;

· Stable and adjustable pressure, purity and flow to meet different needs of customers;

· The plant has the features of advanced process, reasonable structure, safety and stability;

· The air inlet pressure difference automatic charging technology is adopted to reduce the air supply volume of the blower, prolong         the service life of the equipment and reduce the cost of oxygen manufacturing;

· The requirement for the automation level of the whole equipment is relatively low. The air compressor, freeze dryer / condenser can     be controlled separately from the oxygen generator, and can also be controlled by linkage.

Application fields:

PSA oxygen generators are widely used in different areas, including medical, plateau, environmental protection, combustion-supporting, cultivation, laboratory, chemical industry, electron, medicine, food, marine, aluminium soldering, lithium cell, heat treatment, laser cutting and etc.

Technical parameters:

● Oxygen delivery ≤192Nm3/hr;

● Purity 93%±3

● Pressure 0.4~1.0 Mpa

● Atmospheric dew point ≤－40℃

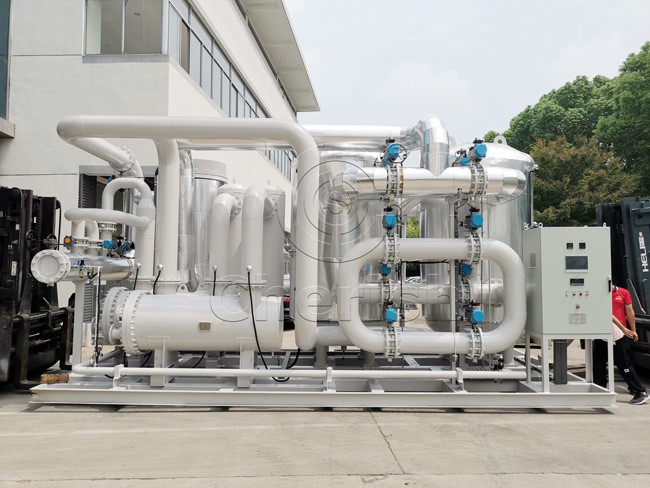

Product picture:
